Calcinated in lime kiln, quicklime is usually massive and can be used to make calcium carbide, liquid alkali and bleaching powder. It can be used as filler and refractory in industry, and can be used in building to make lime emulsion paint and mortar.

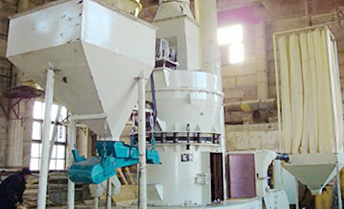

(1) Grinding Stage:
Calcined lime raw materials are crushed through feeder after intermediate cooling and sent to main grinding room for grinding. The grinded fine powder is classified by fan air flow and then sent into outlet air pipeline to enter the collection stage.
(2) Collecting Stage:
The dust gas enters the cyclone collector and separates most of the fine powder from the finished product. At the same time, the surplus gas is sent to the pulse dust collector, which is transformed into clean gas through the pulse dust collector, and the fine powder collected by the cloth bag is conveyed to the cyclone collector by the screw conveyor.
(3) Conveying Stage:
The finished ore powder collected by dust collector and cyclone collector is sent from screw conveyor to bucket elevator, and then into finished material tank. The dust gas in the tank is collected by the top dust collector, and the finished product is stored in the finished tank, and the clean gas is discharged.
(4) Finished Product Stage:
The lime powder obtained from the powder can be directly sent to the customer site for use without additional downstream processing procedures.
