MB5X Pendulous Hanging Grinding Mill

MB5X Pendulous Hanging Grinding Mill represents the most advanced grinding processing technology. The brand-new structural design not only lowers the operation and maintenance cost, but also does well in environmental protection and finished product quality. It is available when processing the non-combustible, non-explosive brittle minerals products like limestone, calcite and marble, etc. MB5X Pendulum mill is widely used in mining, building, power plant and coating industries.


Technical Advantages

Thin oil lubricating grinding roller device, low maintenance cost

Grinding roller device of MB5X pendulous hanging grinding mill adopts thin oil lubrication, which is a technology initiated domestically, and is maintenance-free and easy to operate. Thin oil lubrication is of oil bath lubrication, which is more convenient than grease lubrication since no need for frequent oil-adding, and it is of lower maintenance cost as well.

Efficient powder collector, prolonging service life of equipment

Between the powder classifier and the powder collector, square pipeline is applied, which is convenient for multiple choices of wear-proof materials, and at the same time, it could avoid windage phenomenon in the entrance of powder collector due to variable diameter of the square and the circular pipeline.

Pulse dust collector, high efficient and environmental friendly

MB5X pendulous hanging grinding mill applies pulse dust collector, removing ash via pneumatic force and operating automatically, which omits manual ash-removing operation and completely eradicate powder pollution. The whole process is of excellent environmental protection effect.

Configuration science, reduced energy consumption

New hanging type cage sorter, variable frequency control, fine controllable finished product; isolated cyclone powder collector, high efficiency of collecting powder; curved air duct, small airflow resistance

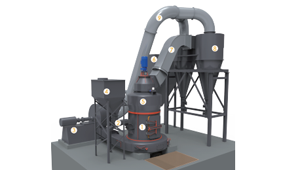

Working principle

As for the working process of each main unit, the roller part is the key in pulverization. By rotating, the materials can be ground into powder with ideal and expected size. The rollers of MB5X Pendulum Mill take thin oil lubricating device which operates automatically. It works with rollers synchronously to help lubricate rollers and disperse heat. Below the rollers, shovel plate is installed. In the process of pulverizing, the shovel plate would rotate with the grinding rollers at the same time and play an important part in throwing up materials to feed them into grinding roller rings so as to form a padding layer. The padding layer is then ground into powder under action of outward centrifugal force generated by grinding rollers. The roller hanger of MB5X Mill uses the mesh-typed design which ensures the ventilation area in grinding cavity and material conveying efficiency so that the whole grinding efficiency is elevated.

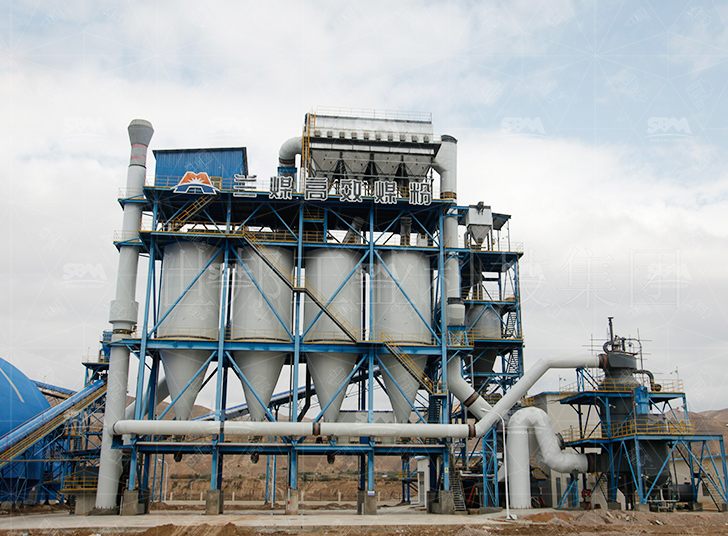

Case

Main Specification

Model MB5X98 MB5X118 MB5X138 MB5X158 MB5X178 MB5X198 MB5X218 MB5X238 MB5X268 MB5X298
Quantity of grinding roller(plece) 3-4 3-4 3-4 3-5 4-5 4-5 4-5 4-6 4-6 4-6
Diameter of grinding roller(mm) 300 400 460 530~480 600~540 670~600 730~660 800~620 900~700 1000~780
Diameter of grinding ring(mm) 1000 1200 1400 1600 1800 2000 2200 2400 2700 3000
Height of grinding ring(mm) 180~160 210~190 240~220 270~250 310~280 340~320 370~350 400~380 450~420 500~460
Feed size(mm) 25 25 30 30 35 35 40 45 50 55
Fineness of finished products(mm) 0.045-1.0 0.045-1.0 0.045-1.0 0.045-1.2 0.045-1.2 0.045-1.2 0.045-1.5 0.045-1.5 0.045-1.5 0.045-1.5
Capacity(t/h) 2.7-6.5 4-9.8 6.5-16 9-23 11-25 15-32 19-38 26-60 36-75 48-83
Power(kw) 82.5-92.5 126.5-150.5 206-229.5 293.5-329.5 390-437 492-560 623.5-703.5 777-897 1005-1120 1247-1407
NOTE: The above parameters are for reference only; for more configurations, please consult our sales staff.
