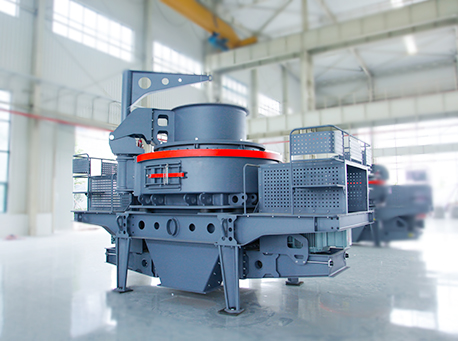

VSI5X Crusher

VSI5X crusher (the latest vertical shaft impact crusher improved from VSI crusher) is necessary crushing equipment used in manufactured sand production line, sand & gravel production plant etc. It is widely used for manufactured sand or artificial sand production. Also, it is the mainstream truing machine for mining and construction industries.

Technical Advantages

Mature and stable

Dual purpose balk cargo tray - simplicity of operation, quick switchover of feedstock modes.

Thin oil lubrication

Key parts adopt optimization design - reducing wear and use-cost

Investment economy

Rotor optimization design - deepening cavity type to increase yield

Configuration science, reduced energy consumption

Elaborately-designed Emission Mouth and Inner Curve - reducing resistance and increasing throughput


Main specification

Model Soft material Hard material Side and central feeding Fully central feeding Speed (r/min) Power (kw) Overall dimension (mm)
Maximum feeding size (mm) Throughput (t/h)
VSI5X1145 50 45 500-640 250-360 1100-1310 220×2 5000×2790×3320
VSI5X9532 45 40 350-540 180-280 1300-1510 160×2 4560×2600×2900
VSI5X8522 40 35 240-380 120-190 1500-1700 110×2 4140×2500×2700
VSI5X7615 35 30 150-280 70-140 1700-1900 75×2 4100×2330×2300
NOTE: Capacity is according to medium hard limestone.The size,humidity level and characters of materical swill influence the capacity.
