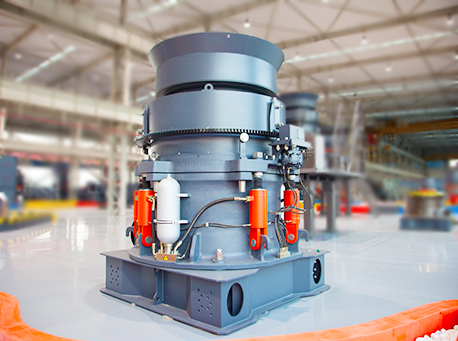

HPT Cone Crusher

HPT cone crusher has the same structure and the same crushing theory as traditional HPC cone crusher. But HPT cone crusher strengthens the performance of driving device and sealing service. And the structure is much more compact, the control system is much more intelligent.

Online Chat
Inquiry

Technical Advantages

Mature and stable

Optimized Structure for Higher Production Efficiency

Thin oil lubrication

Full Hydraulic Control for More Convenience and Reliability

Investment economy

Inter-particle Crushing for Better Product Quality

Configuration science, reduced energy consumption

Flexible Cavity Conversation and Wide Application

Case

More

Hebei lime grinding production line with output of 400,000 tons per hour

Raw material: limestone

Processing capacity: 400,000 tons/year

Finished powder fineness: 325 mesh D90

Zhejiang calcite-limestone ultrafine powder production line with annual output of 100,000 tons

Raw material: calcite, limestone

Feeding particle size: ≤20mm

Finished powder fineness: 1250--1600 mesh

Gansu bituminous coal grinding production line with annual output of 200,000 tons

Raw material: bituminous coal

Processing capacity: 200,000 tons/year

Finished powder fineness: 200 mesh D90

Main specification

Model Cavities Feed opening (mm) Minimum discharging size (mm) Capacities (t/h) Nominal installed power (kw) Maximum installed power (kw) Overall dimension (mm)
HPT100 C1(Extra Coarse) 140 19 75-140 90 90 1705×1510×1583
C2(Coarse) 100 13 60-110
M(Medium) 70 9 52-100
F1(Fine) 50 9 50-95
F2(Extra Fine) 20 6 45-90
HPT200 C2(Coarse) 185 19 145-250 160 160 2135×1750×1927
M(Medium) 125 16 135-235
F1(Fine) 95 13 115-220
F2(Extra Fine) 75 10 90-190
HPT300 C1(Extra Coarse) 230 25 220-440 220 250 2725×2110×2871
C2(Coarse) 210 19 190-380
M(Medium) 150 16 175-320
F1(Fine) 105 13 145-280
F2(Extra Fine) 80 10 110-240
HPT400 C1(Extra Coarse) 295 30 300-630 315 315 2775×2370×2295
C2(Coarse) 251 25 285-560
M(Medium) 196 20 250-490
F1(Fine) 110 13 180-345
F2(Extra Fine) 90 10 135-320
HPT500 C1(Extra Coarse) 330 38 425-790 400 400 2800×3480×4050
C2(Coarse) 290 30 370-700
M(Medium) 210 22 330-605
F1(Fine) 135 16 270-535
F2(Extra Fine) 95 13 220-430
HPT800 C1(Extra Coarse) 350 38 570-1200 630 630 3970×3345×4235
C2(Coarse) 299 32 520-1050
M(Medium) 265 25 475-950
F1(Fine) 220 16 370-800
F2(Extra Fine) 150 13 310-600
NOTE: Capacity is according to medium hard limestone.The size,humidity level and characters of materical swill influence the capacity.
